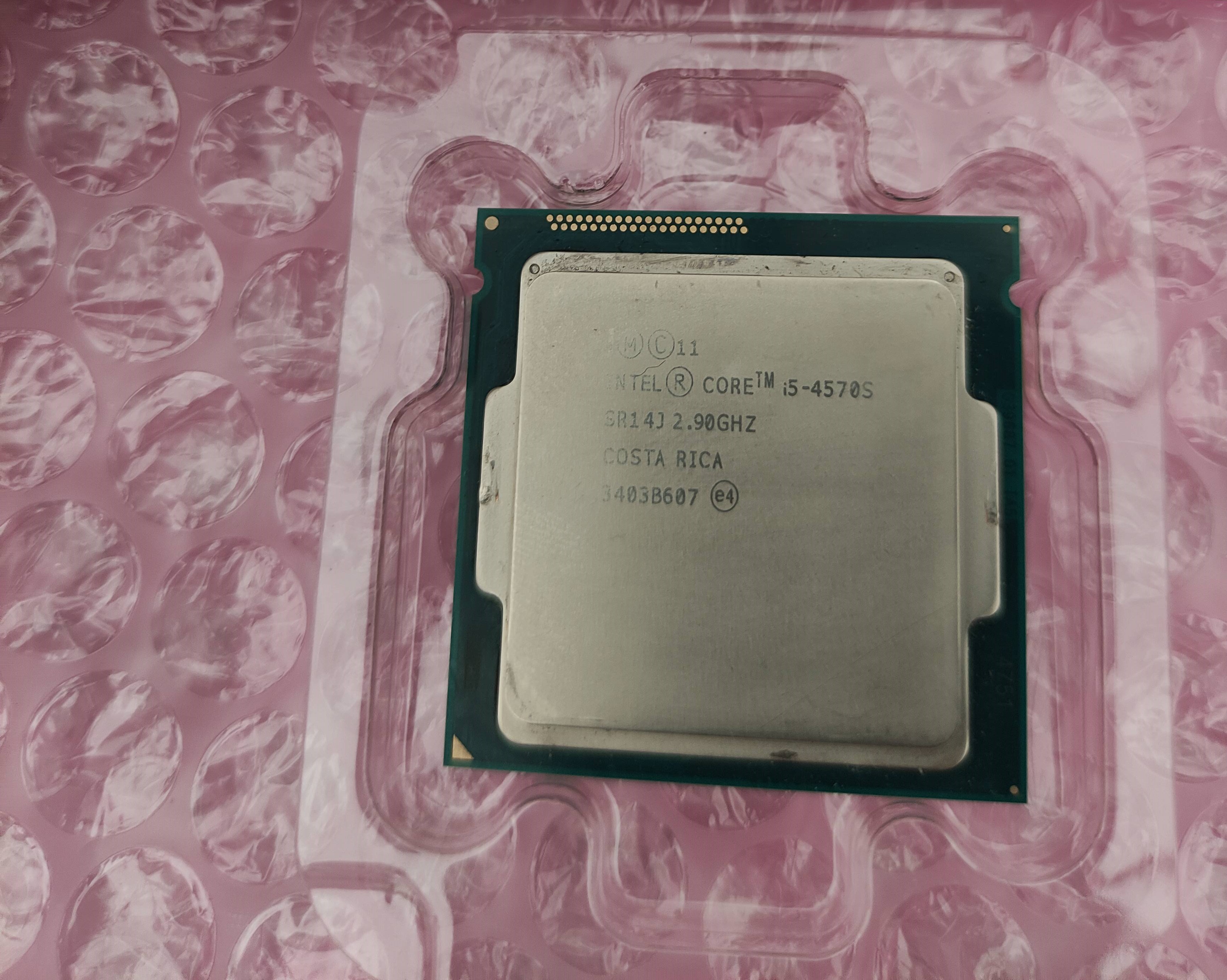

Intel Core i5-4570S 2.90Ghz Haswell quad core cpu SR14J socket 1150
Units in Stock: 1
£11.00 inc. tax
Cleaned and tested taken from a working system.
Code Name Products formerly Haswell
Processor Number i5-4570S
Lithography 22 nm
CPU Specifications
Total Cores 4
Total Threads 4
Max Turbo Frequency 3.60 GHz
Intel® Turbo Boost Technology 2.0 Frequency‡ 3.60 GHz
Processor Base Frequency 2.90 GHz
Cache 6 MB Intel® Smart Cache
Bus Speed 5 GT/s
TDP 65 W
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3-1333/1600, DDR3L-1333/1600 @ 1.5V
Max # of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
ECC Memory Supported ‡ No
Processor Graphics
Processor Graphics ‡ Intel® HD Graphics 4600
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.15 GHz
Graphics Video Max Memory 2 GB
Graphics Output eDP/DP/HDMI/VGA
Max Resolution (HDMI)‡ 4096x2304 @24Hz
Max Resolution (DP)‡ 3840x2160 @60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 3840x2160 @60Hz
Max Resolution (VGA)‡ 1920x1200 @60Hz
DirectX* Support 11.2/12
OpenGL* Support 4.3
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Flexible Display Interface (Intel® FDI) Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 3
Device ID 0x412
Expansion Options
Scalability 1S Only
PCI Express Revision Up to 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1150
Max CPU Configuration 1
Thermal Solution Specification PCG 2013C
TCASE 71.35°C
Package Size 37.5mm x 37.5mm
Advanced Technologies
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ No
Intel® Transactional Synchronization Extensions No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Intel® My WiFi Technology Yes
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Security & Reliability
Intel vPro® Eligibility ‡ Intel vPro® Platform
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Anti-Theft Technology Yes
Intel® Stable IT Platform Program (SIPP) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Code Name Products formerly Haswell
Processor Number i5-4570S
Lithography 22 nm
CPU Specifications
Total Cores 4
Total Threads 4
Max Turbo Frequency 3.60 GHz
Intel® Turbo Boost Technology 2.0 Frequency‡ 3.60 GHz
Processor Base Frequency 2.90 GHz
Cache 6 MB Intel® Smart Cache
Bus Speed 5 GT/s
TDP 65 W
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3-1333/1600, DDR3L-1333/1600 @ 1.5V
Max # of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
ECC Memory Supported ‡ No
Processor Graphics
Processor Graphics ‡ Intel® HD Graphics 4600
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.15 GHz
Graphics Video Max Memory 2 GB
Graphics Output eDP/DP/HDMI/VGA
Max Resolution (HDMI)‡ 4096x2304 @24Hz
Max Resolution (DP)‡ 3840x2160 @60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 3840x2160 @60Hz
Max Resolution (VGA)‡ 1920x1200 @60Hz
DirectX* Support 11.2/12
OpenGL* Support 4.3
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Flexible Display Interface (Intel® FDI) Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 3
Device ID 0x412
Expansion Options
Scalability 1S Only
PCI Express Revision Up to 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1150
Max CPU Configuration 1
Thermal Solution Specification PCG 2013C
TCASE 71.35°C
Package Size 37.5mm x 37.5mm
Advanced Technologies
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ No
Intel® Transactional Synchronization Extensions No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Intel® My WiFi Technology Yes
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Security & Reliability
Intel vPro® Eligibility ‡ Intel vPro® Platform
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Anti-Theft Technology Yes
Intel® Stable IT Platform Program (SIPP) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Product Code: 2QmVBq6
Brand: Intel
Product Condition: Used
weight: 66.0g
